Retaining Wall Curve CornerStone 100

Retaining Wall Curve details are often required for specific sites and can be specified by designers and engineers. Correct construction and professional completion of these wall details greatly enhances the visual appeal of the finished project and avoids the time and costs associated with improper installation. This document provides illustrated step-by-step instructions for building convex and concave curves.

separator-fancy

Step 1: Retaining Wall Curve Convex First Course

  • If possible, start building a retaining wall curve from the center and work left and right through the curve
  • Use PVC Flex Pipes to create smooth and accurate Convex curves
  • Use the back of the unit for alignment
  • Remove one or both CornerStone® wings when building a Convex curve
  • Build each course of units by starting at the same place and the same bond as the last course
  • Convex retaining wall curve have a slight increase in batter or setback to the standard 5/8″
  • The taller the wall the larger the Convex first course needs to be. The radius of each additional course will be slightly smaller than the lower course
  • CornerStone® minimum retaining wall curve Concave is approximately 3.6 foot radius



retaining-wall-curve-convex-cornerstone



Step 2: Retaining Wall Curve Convex Geogrid

  • Each geogrid length should be laid perpendicularly to the wall face
  • Geogrid should not overlap on the CornerStone® units
  • Correct geogrid orientation, strength and length is crucial to the success of the wall project

Retaining Wall Curve Convex with Geogrid CornerStone

separator-fancy

Step 1: Retaining Wall Curve Concave First Course

  • If possible, start building a retaining wall curve from the center and work left and right
    through the curve
  • Use PVC Flex Pipes to create smooth and accurate Concave curves
  • Use the back of the unit for alignment
  • Build each course of units by starting at the same place and the same bond as
    the last course
  • Concave curves have a slight decrease in batter or setback to the standard 5/8″
  • The taller the wall the smaller the Concave first course needs to be. The radius of each additional course will be slightly larger than the lower course
  • CornerStone® minimum Concave curve is approximately 3.6 foot radius



Retaining Wall Curve Concave Inside CornerStone





Step 2: Retaining Wall Curve Concave Geogrid

  • Each geogrid length should be laid perpendicularly to the wall face
  • Geogrid should not overlap on the CornerStone® units
  • To ensure 100% coverage, place a second layer of geogrid centered to the unreinforced triangle zone one course above the main geogrid layer
  • Correct geogrid orientation, strength and length is crucial to the success of the wall project



Retaining-Wall-Curve-Concave-Inside-geogrid-CornerStone

More CornerStone 100 Installation

  • cornerstone 100 gravity retaining wall

CornerStone 100 Gravity Retaining Wall Installation

January 7th, 2016|0 Comments

Gravity (SRW) Cornerstone retaining wall systems are structures lower in height that use the CornerStone® unit weight combined with gravel core infill [...]

  • cornerstone 100 geogrid retaining wall

CornerStone 100 Geogrid Wall

January 7th, 2016|0 Comments

Creating a CornerStone® reinforced retaining wall system, involves the use of geogrids for reinforcement. Cornerstone geogrid retaining walls 4.0ft (1 [...]

  • cornerstone 100 base elevation

CornerStone Retaining Wall Block Base Elevation Change

January 7th, 2016|0 Comments

CornerStone Retaining Wall Block Installation For Base Elevation Change are often required and can be problematic if not planned properly. Correct con [...]

  • cornerstone 100 retaining wall corners

Retaining Wall Corner Installation

January 7th, 2016|0 Comments

Retaining wall corner installation details are often required for specific sites and can be specified by designers and engineers. Correct construction [...]

  • cornerstone 100 stone stairs

CornerStone 100 Stairs

January 7th, 2016|0 Comments

Proper installation of stairs in a wall project requires the same care and thoroughness as the creation of the wall itself. CornerStone’s design featu [...]

  • cornerstone 100 stone pillars

CornerStone 100 Pillars

January 7th, 2016|0 Comments

Pillars add a finishing touch of elegance to any CornerStone® wall project. They can be used to create distinguished entranceways to any residence or [...]

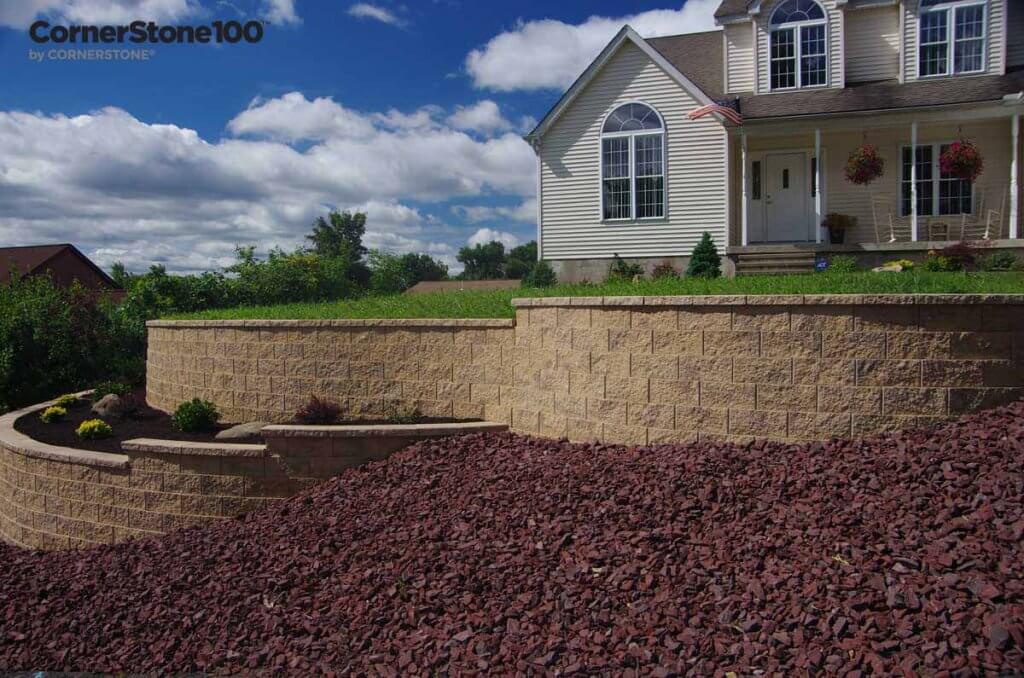

Retaining Wall Curves by CornerStone walls solutions
